grand G500

FOR THE SHORE-SEEKERS

4.95m

LENGTH

115HP

POWER

2.3m

width

9

PEOPLE

Discover limitless possibilities with the compact but versatile Grand G500 - the perfect small family RIB boat & tender. Features such as the ski arch, swim ladder, and freshwater shower system make this a great choice for water sports fun, while the extendible sun bed areas and optional speaker system further elevate the experience for your passengers onboard.

FROM $61,200

*Price includes standard features, Yamaha 60HP Engine & 9inch Garmin Chart Plotter

GRAND G500

A close up visual of the rear of the Grand G500 with its stern step ends and ski arch
The Grand G500 sat on the water with a Yamaha VMAX engine on the back along with a ski arch

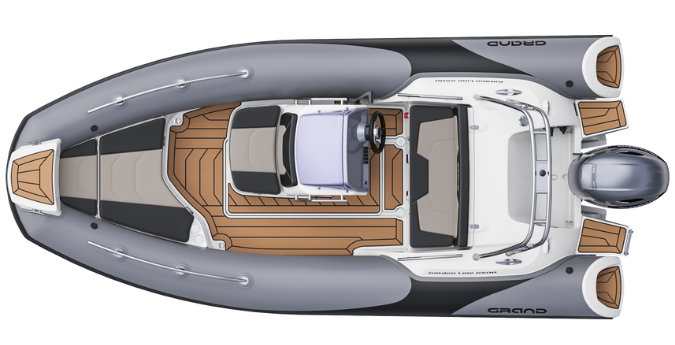

A render visual of the Grand G500 from above, showing the internal layout of the boat with grey tubes and tan brown flooring

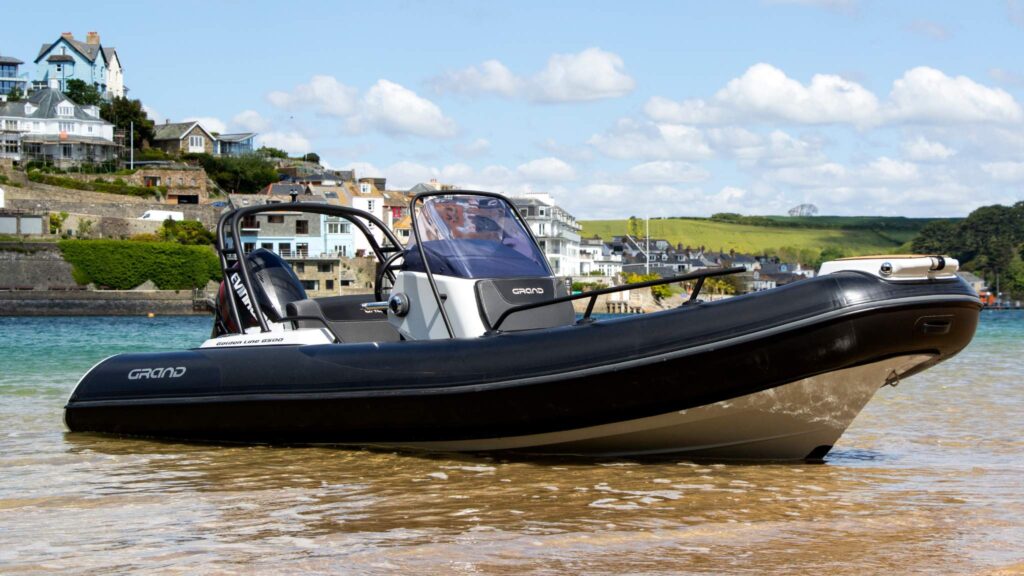

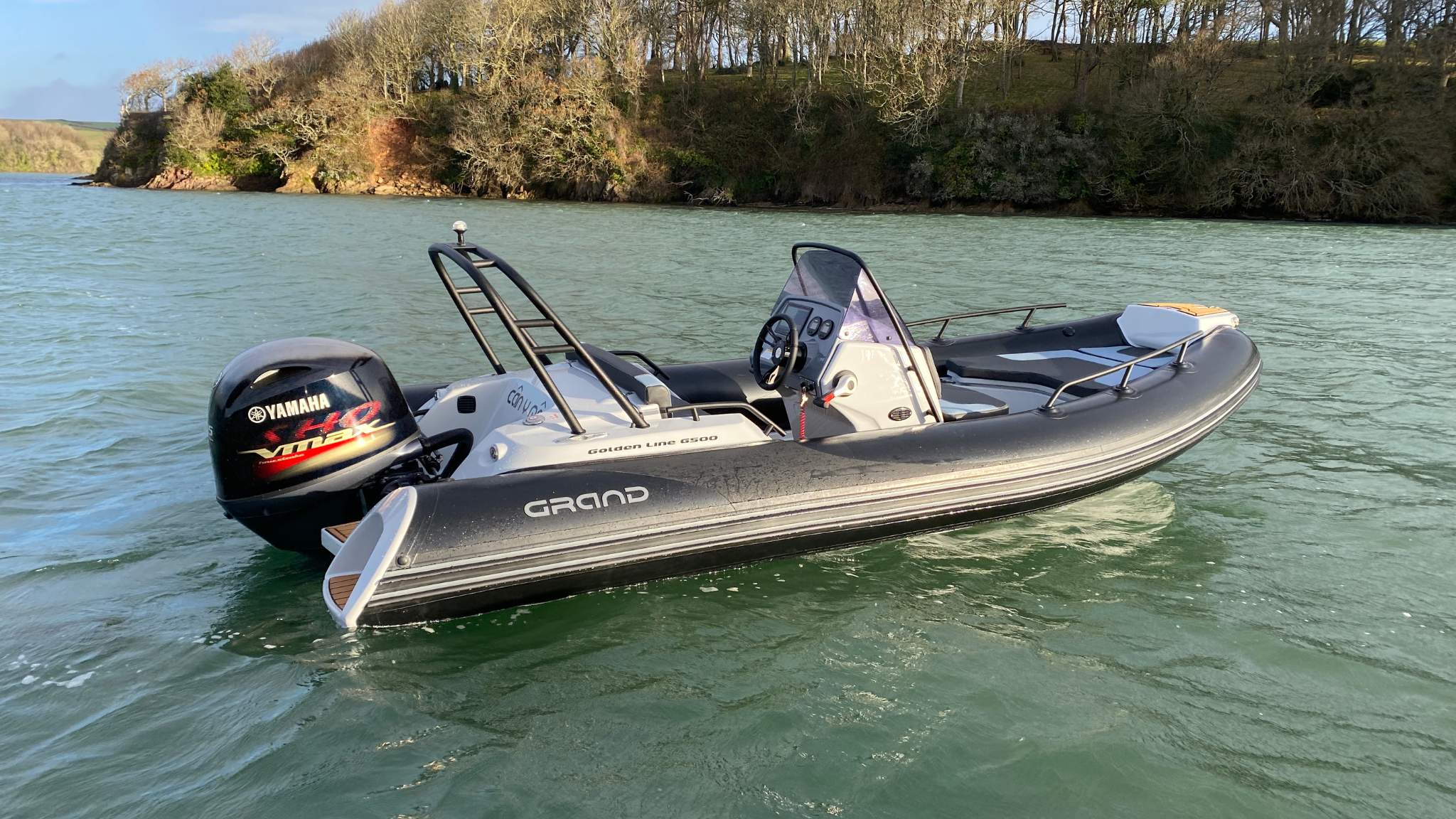

A Grand G500 sat on the water, featuring dark tubes and a ski arch at the stern
A Grand G500 sat on the water with its passenger fishing off the side

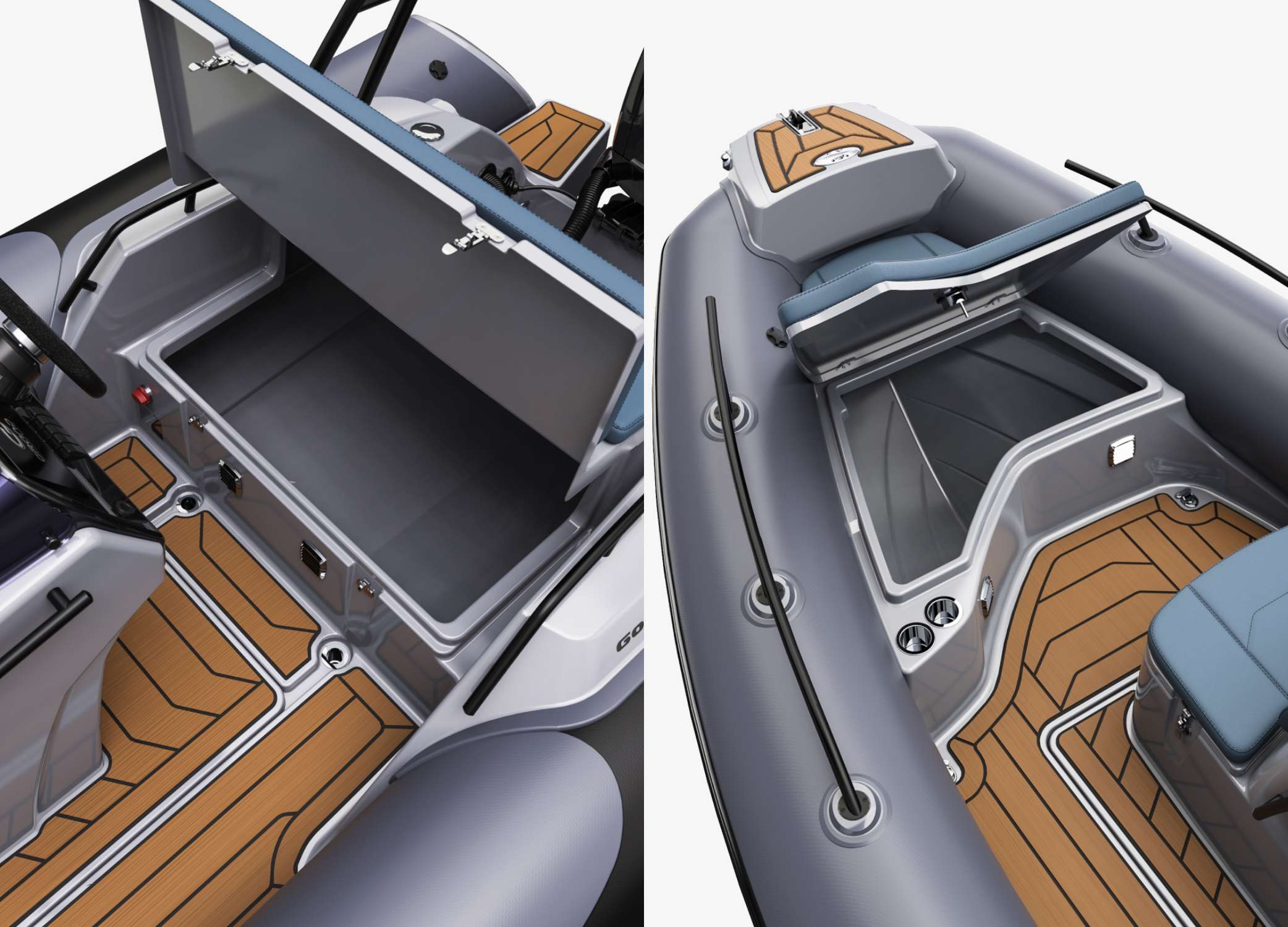

A render visual of the helm seating on the Grand G500 raised, revealing large locker space underneath
A render visual of the Grand G500's bow, with the large bow locker open and space inside

Vast Storage

Deep storage lockers throughout the boat

Pack the adventure away easily and without a fuss thanks to the ample storage areas throughout the Grand G500. Find deep storage lockers underneath the helm seating, as well as underneath the additional passenger seat in front of the console. Up at the bow, two further storage lockers can be found beneath the bow sun bed, perfect for putting away ropes and your anchor.

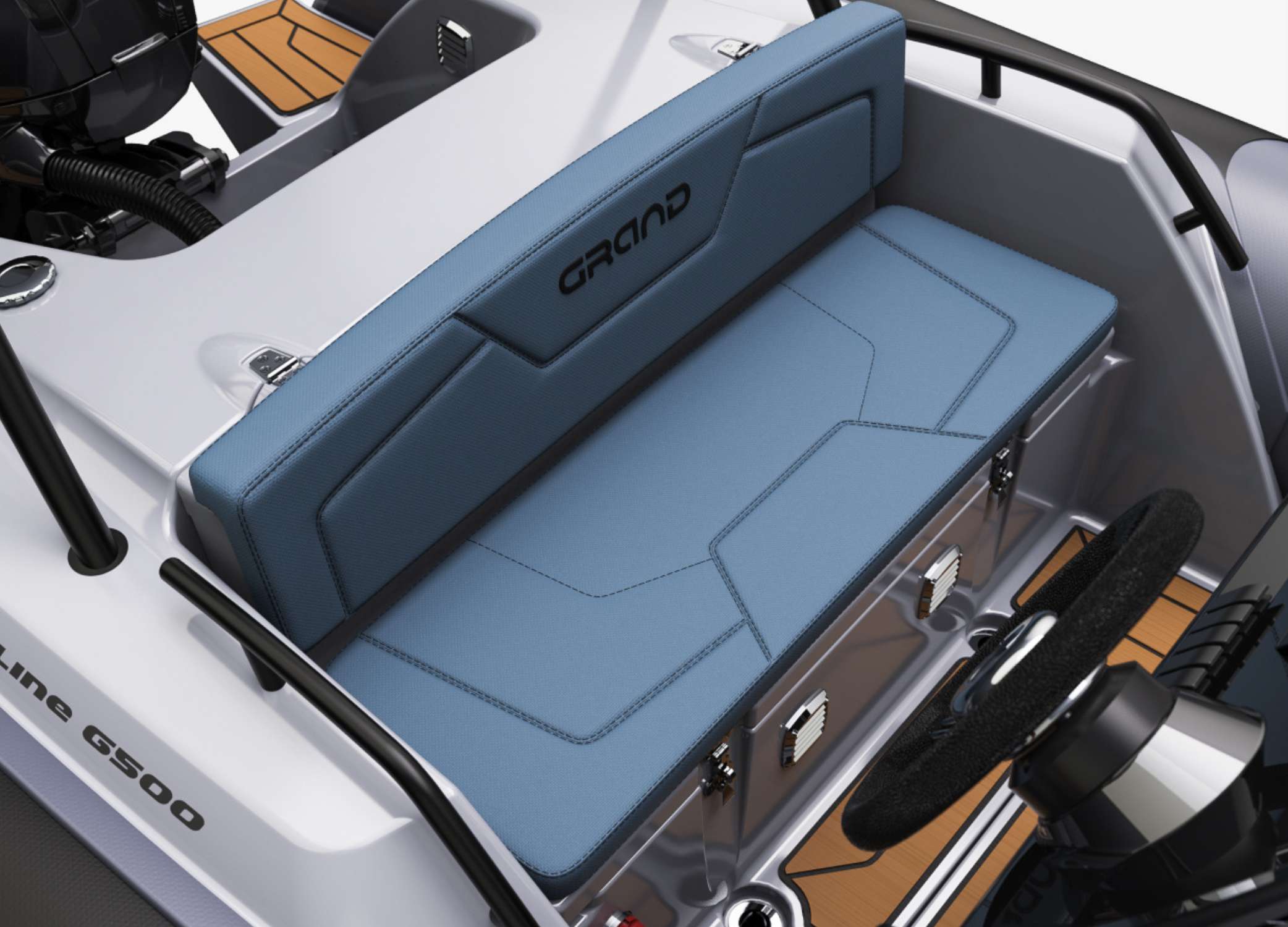

A render visual of the helm seating at the stern of the Grand G500, behind the steering wheel
A render visual of the ski arch on the Grand G500

Helm Seating

Sit back with wide-set helm seating

Sit back in comfort at the helm with deep-set cushioned seating that creates a comfortable, shock-absorbing base to drive from. With handrails either side, this seat comfortable seats two people and provides passage to the rear section of the boat.

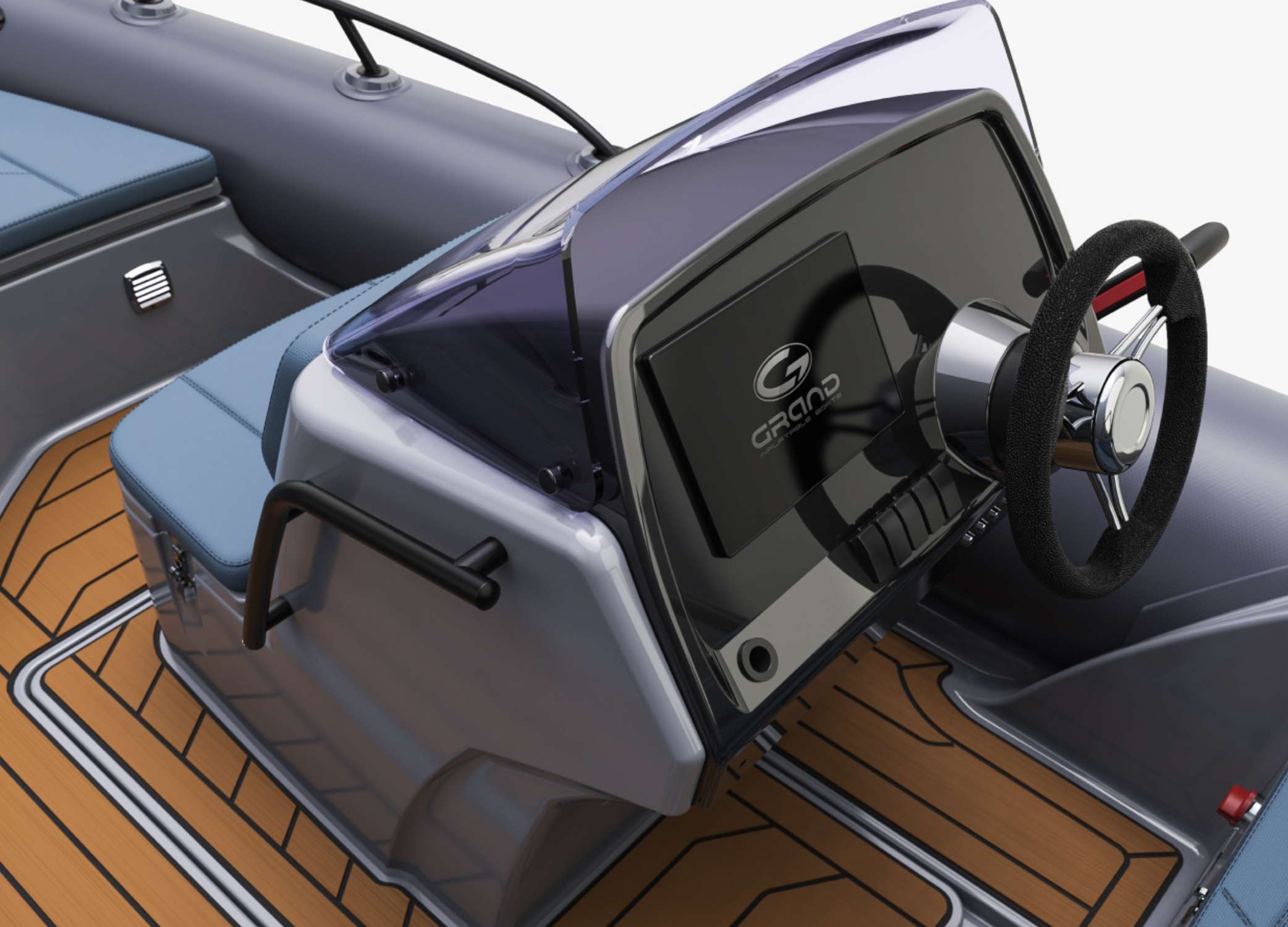

A render visual of the Grand G500's steering console with a dashboard chart plotter screen and steering wheel
A render visual of the side of the Grand G500, showing the boat's console from the side

Customisable Control

Compact & functional Dashboard

With a generous storage compartment, safety handrails, windshield and dashboard suitable for a 9″ chart plotter screen, this space-efficient console area provides you with all the information and features you need to make your cruises comfortable and safe.

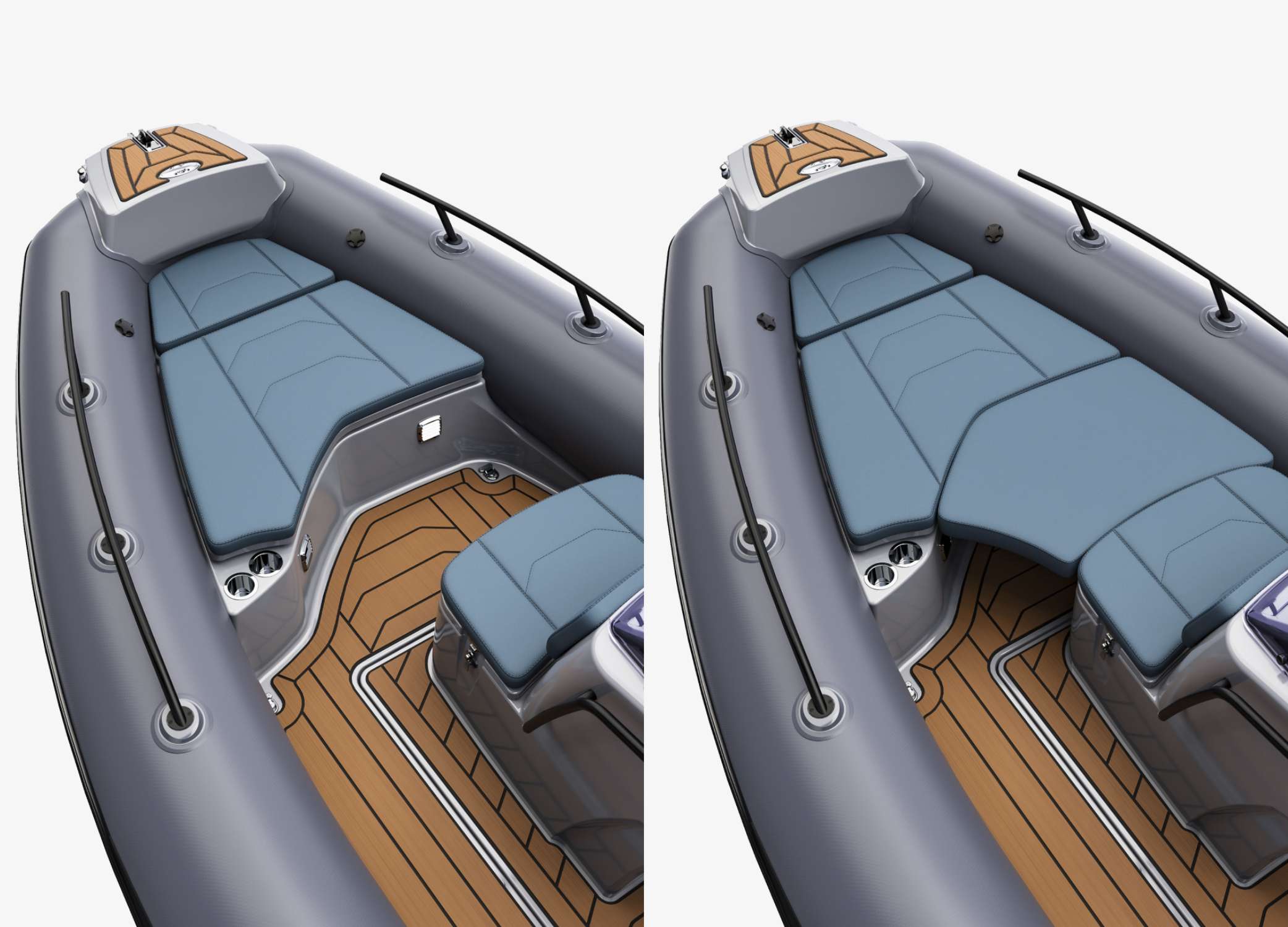

A render visual of the Grand G500 bow space, with blue seat cushions that have been extended to create a bed space
A render image of the cushions at the bow of the Grand G500

Extensive Comfort

Deep-Set Cushioned seating & extendible sun beds

With comfortable, cushioned seating finished with European upholstery by Spradling, the Grand G500 offers a truly comfortable experience whilst out on the water, no matter where you are seated. The sun bed extension at the bow of the boat offers a great spot for the family to relax and unwind.

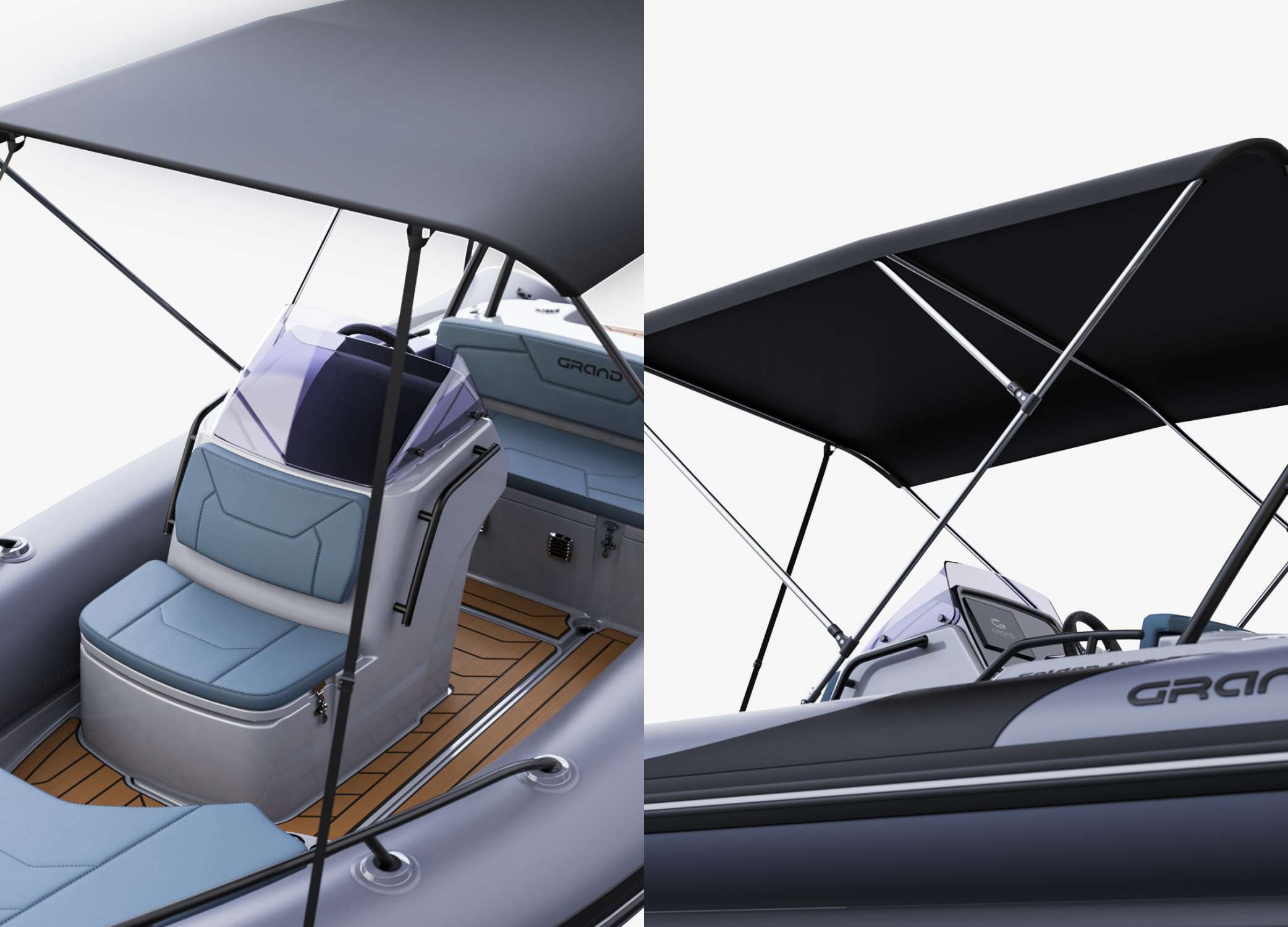

A render visual of a bimini cover above the stern of the Grand G500
A render image of the bimini cover on the Grand G500

Find Shade

Bimini top cover

Get out of the sun whilst on the water with the fitted bimini top which provides cover for almost all of the boat. Fold it back and rest it on the tubes to keep the bimini out of the way while the boat is on the move.

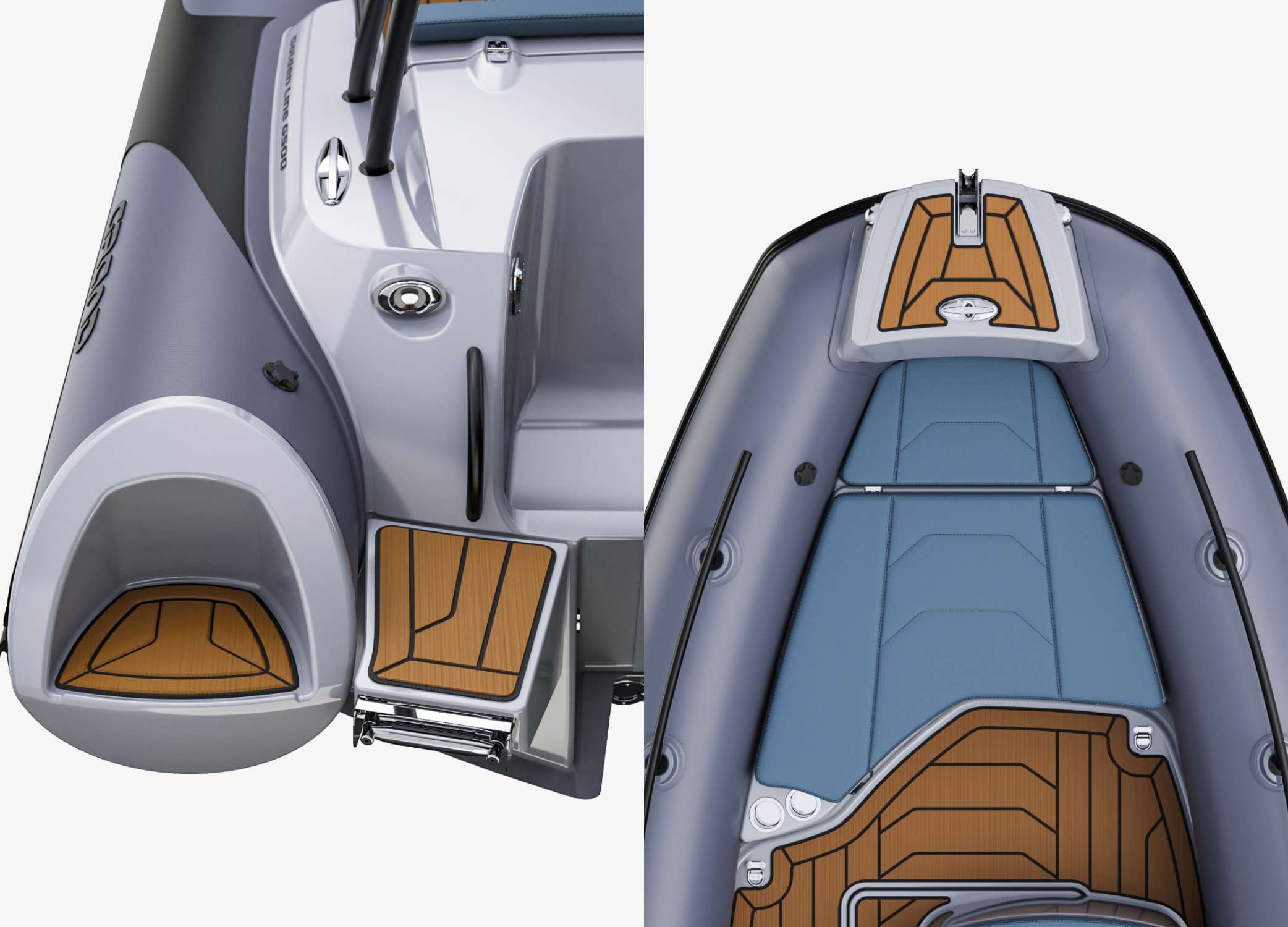

A render visual of the Grand G500's bow, with bow step plate and cerulean coloured seat cushions
A render visual of the SeaDek flooring on the stern step plates and ladder of the Grand G500

Access with Ease

bow step plate and stern platforms

Embarking and mooring can be done comfortably and confidently thanks to the Grand G500’s intentional design approach. The bow step plate creates a stable platform to climb onboard the bow and features mooring cleats and an anchor roller. Down at the stern, a small swimming platform, retractable ladder and tube step ends create a comfortable step up onto the boat, whether you’re embarking from a pontoon, beach or the sea.

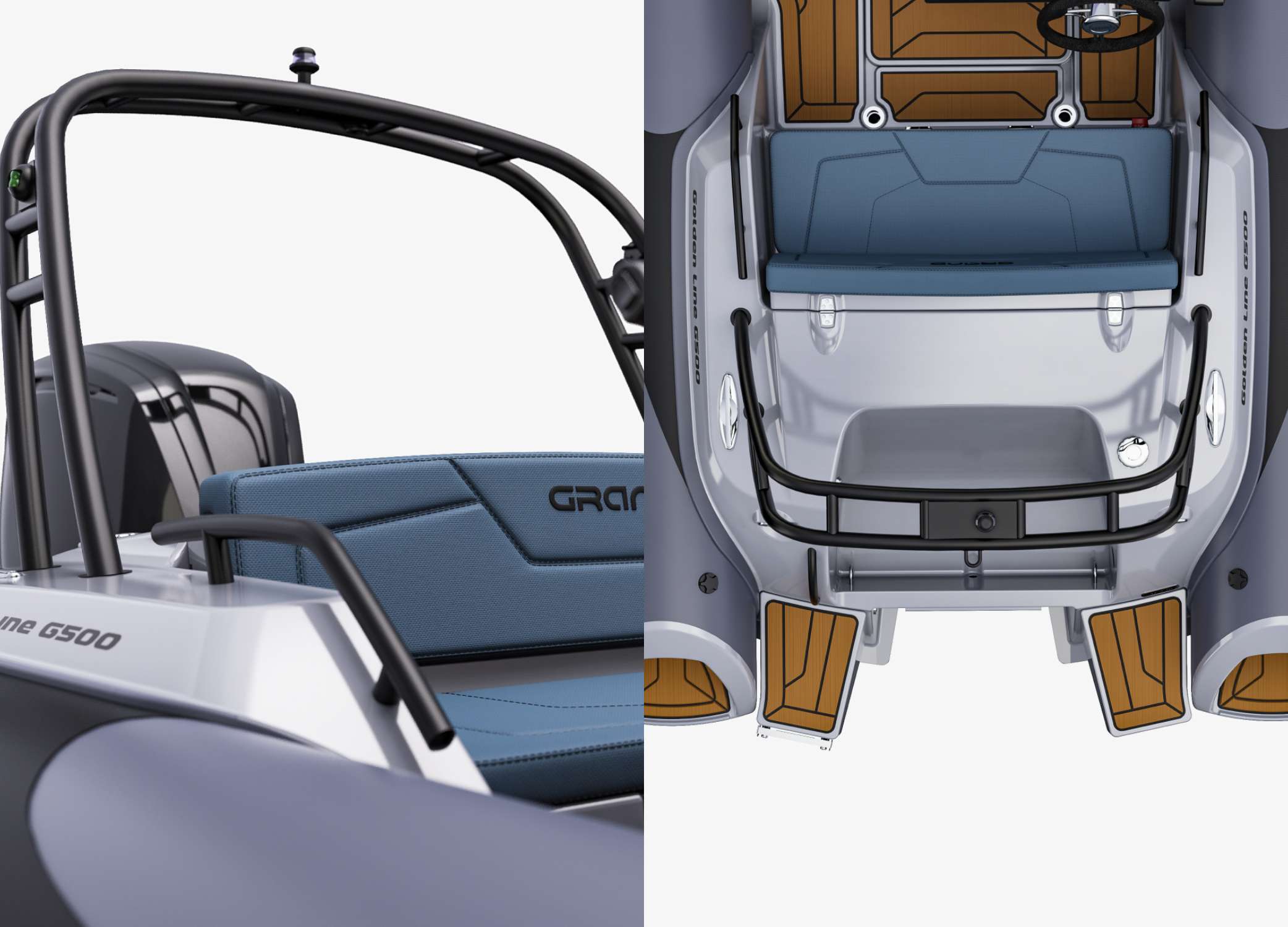

A render visual of the ski arch on the Grand G500
A render of the stern step ends on the Grand G500

Tow Sports Fun

Fitted ski arch at the stern

The ski arch at the stern of the Grand G500 empowers wakeboarding, waterskiing, towable inflatable fun. Rack your boards up and out of the way while you’re underway either in the storage lockers or by attaching them to the ski tower. You’ll also find your navigational lights fitted on either side of this arch.

A small, deluxe family cruiser & tender.

The Grand G500 is a luxury tender boat or rigid inflatable boat choice, offering a smooth ride and countless comfort features for passengers on board. This is a boat that provides comfortable cruising and a wonderful place to relax when moored.

Grand G500 Details

Our premium 5 metre / 16ft rigid inflatable boat can be powered by up to 115HP and serves effectively as either the perfect family RIB boat, or as a spacious super yacht tender. Despite being only 5m in length, the Grand G500 maximises its use of space due to its contemporary design and layout. The positioning of the helm allows for ample seating at the bow of the boat, enabling family and friends to sit comfortably during cruising – or to relax and sunbathe when moored.

Customisations on this midsize family RIB include the option of a swim ladder and waterski bar, making this the perfect boat for water sports and adventure. Small and light enough to transport easily, yet spacious enough to comfortably sit a group of family and friends, the G500 is the ideal family inflatable boat to take on holiday and use over long weekends away.

Deep V Hull

Inflatable Hypalon Tube with 5 Chambers and Overpressure Valves

Keel & Tube Protection

Bow Step Plate with  Mooring Cleat

Large Bow Locker

Tube Mounted Bow Handrails

Fibreglass Steering Console with Windscreen, Seat, Storage & Cup Holder

Cable Steering with Sport Steering Wheel

Electrical Package (NAV Lights, Battery Switch, Bilge Pump & Console Switches)

Overall Cover

Harbour Cover

Powder Coated Stainless Steel

Garmin GPSMAP 7

Moulded Helm Seat with Vast Storage

Ski Arch

Swimming Platforms with Ladder

Silvertex Premium Upholstery

Integrated Bow & Stern Lifting Eyes

Pump & Paddles with Maintenance Kit

Fibreglass Tube Step Ends

SeaDek Foam Flooring

90L Under Floor Fuel Tank

Bow Sundeck Kit

Bow Sundeck Kit Extension

Bimini Top

Shower Kit with Water Tank

Garmin GPSMAP 7 or 9  Inch Chartplotter / Fish Finder

Fusion RA210 Marine Stereo

2x Fusion 6.5 Inch XS Series Speakers

Scanstrut Rokk Wireless Active Phone Charger / Holder

OVERALL LENGTH: 495cm

INSIDE LENGTH: 332cm

OVERALL WIDTH: 230cm

INSIDE WIDTH: 128cm

BARE BOAT WEIGHT: 435kg

LOADING CAPACITY: 1000kg

PASSENGER CAPACITY: 9

BOAT DESIGN CATEGORY: C

ENGINE MAX: 115HP

ENGINE WEIGHT MAX: 210KG

ENGINE SHAFT LENGTH: 20″ (long)

MIDSECTION/AFT DEADRISE: 21°/20°

FUEL TANK: 90 L

TUBE CHAMBERS: 5

Hypalon Tubes

Select a primary tube colour & secondary decor colour combination from our Orca Hypalon options.

Upholstery

Premium upholstery colour options by Silvertex. Select one or two-colour upholstery colouring.

Gel Coat

The colour that will feature as the centre of your RIB’s colour scheme; choose one gel coat colour to feature across your console, seats and hull.

SeaDek Flooring

The colour scheme that will appear across your boat’s decking and steps.

A render visual of the Grand G500 from the side, showing the internal layout of the boat with console and seating at the bow and stern
A render visual of the Grand G500 from the side with light grey tubes and fibreglass hull

*Grand G500 model shown above features light grey Hypalon tubes with dark grey Hypalon decor, white gel coat, with Mocha-Black SeaDek flooring & diamante carbon/taupe premium Silvertex Upholstery
